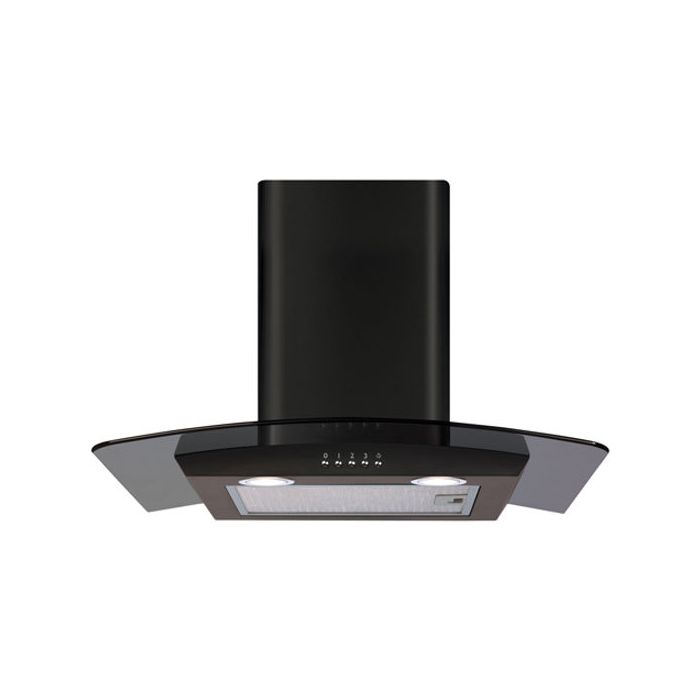

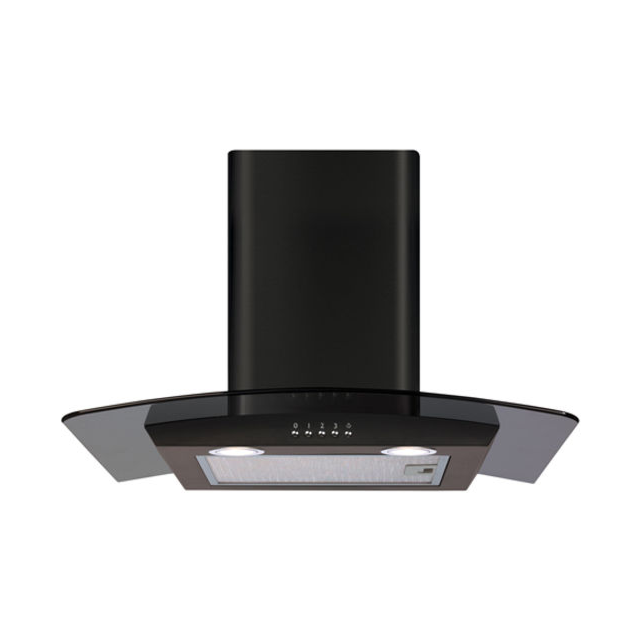

CDA ECP62BL Curved Glass Extractor 60Cm Wide
- ColourBlack
- Manufacturer Labour Guarantee2 years
- Manufacturer Parts Guarantee5 years
- EAN5060143318214
Features
Ducted/ re-circulating installation
3 speeds
Aluminium grease filters
Push button control
Technical Specification
Recommended height above gas hobs: 700mm
Recommended height above electric hobs: 600mm
Power supply: 3A
Rated electrical power: 200W
Ducted/ re-circulating installation
3 speeds
Aluminium grease filters
Push button control
Technical Specification
Recommended height above gas hobs: 700mm
Recommended height above electric hobs: 600mm
Power supply: 3A
Rated electrical power: 200W
Technical Specification
Required height over gas hobs: 700 mm (min)
Required height over electric hobs: 600 mm (min)
Power supply: 3 A
Mains lead length: 1 m
Mains lead rating: H05VV-F m
Protection class: Class I
Outlet diameter: 120mm/150mm mm
Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
Extraction Rates And Noise
Extraction rate: 391 m3/hr
Noise level: 60 dBA
Extraction rate at first speed: 218 m³/hr
Extraction rate at second speed: 302 m³/hr
Extraction rate at third speed: 391 m³/hr
Noise level at first speed: 50 dBA
Noise level at second speed: 58 dBA
Noise level at third speed: 60 dBA
Filters
Charcoal filters: CHA12 (pack of 1)
Number of layers: 4
Number of grease filters: 1
Number of charcoal filters (optional): 1
Ducting kit: AED610/660 or AED510/560ith adaptor
Fitting Notes
Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor
Misc Information
WEEE Category: 01
Required height over gas hobs: 700 mm (min)
Required height over electric hobs: 600 mm (min)
Power supply: 3 A
Mains lead length: 1 m
Mains lead rating: H05VV-F m
Protection class: Class I
Outlet diameter: 120mm/150mm mm
Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
Extraction Rates And Noise
Extraction rate: 391 m3/hr
Noise level: 60 dBA
Extraction rate at first speed: 218 m³/hr
Extraction rate at second speed: 302 m³/hr
Extraction rate at third speed: 391 m³/hr
Noise level at first speed: 50 dBA
Noise level at second speed: 58 dBA
Noise level at third speed: 60 dBA
Filters
Charcoal filters: CHA12 (pack of 1)
Number of layers: 4
Number of grease filters: 1
Number of charcoal filters (optional): 1
Ducting kit: AED610/660 or AED510/560ith adaptor
Fitting Notes
Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor
Misc Information
WEEE Category: 01
| Manufacturer | Cda |
|---|---|
| GTIN | 5060143318214 |
| Colour | Black |
| Model Number | ECP62BL |
| Expired Status | No |
| Is On Display | false |
